Bottom flaps series 7500

Single flaps from aluminium

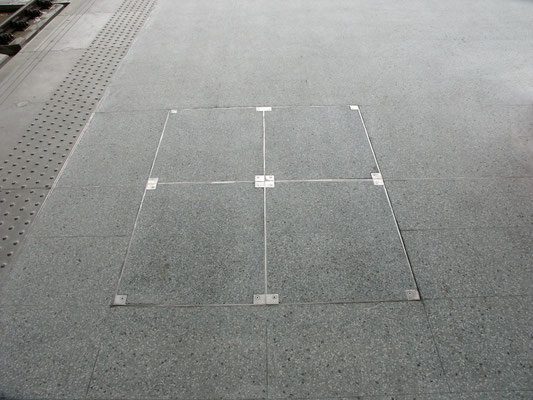

Bottom flaps, accessible for cars and light commercial vans

     Hartbodenbeläge                      Einzelklappen              Autos und leichte Lieferwagen


■ Typical floor coverings
   ceramic tiles, marble, terazzo tiles, concrete, artificial resin, wood and all hard floor coverings
■ Performance
   Up to 5 tonnes pneumatic tyre wheel loads (cars and light commercial vans)

■ Options
   Each flap is offered with visible aluminium or brass connection profiles and appropriate
   lifting devices or high impact resistance
 colouredge PVC connecting profiles
   with aluminium lifting devices. Double sealing.

 Tender specification
   Recessed bottom flaps and frames produced by Howe Green Ltd Series 7500,
   fixed aluminium junction profile on the top edge and mechanically grouted corners, floor

   plate with stainless steel reinforcements, with double sealing at fastening bolts with
   hexagon socket.

   The flaps are sent with combined lifting/security keys.
   All this is produced by Howe Green Ltd, Marsh Lane, Ware, SG12 9QQ, Hertfordshire,
   Great Britain,
   and installed according to manufacturer's specifications and site manager's guidelines.

■
Size
   Total frame size = clearance + 120mm,
   e.g. 600x900mm clearance dimension = 720x1020mm total frame size
■ Weight
   A flap from the series 7500 weighs approx. 155 kg/m² with concrete filling.



Maximal-/Minimalgrößen


Cross section in concrete and wooden subfloors (scale 1:2)
